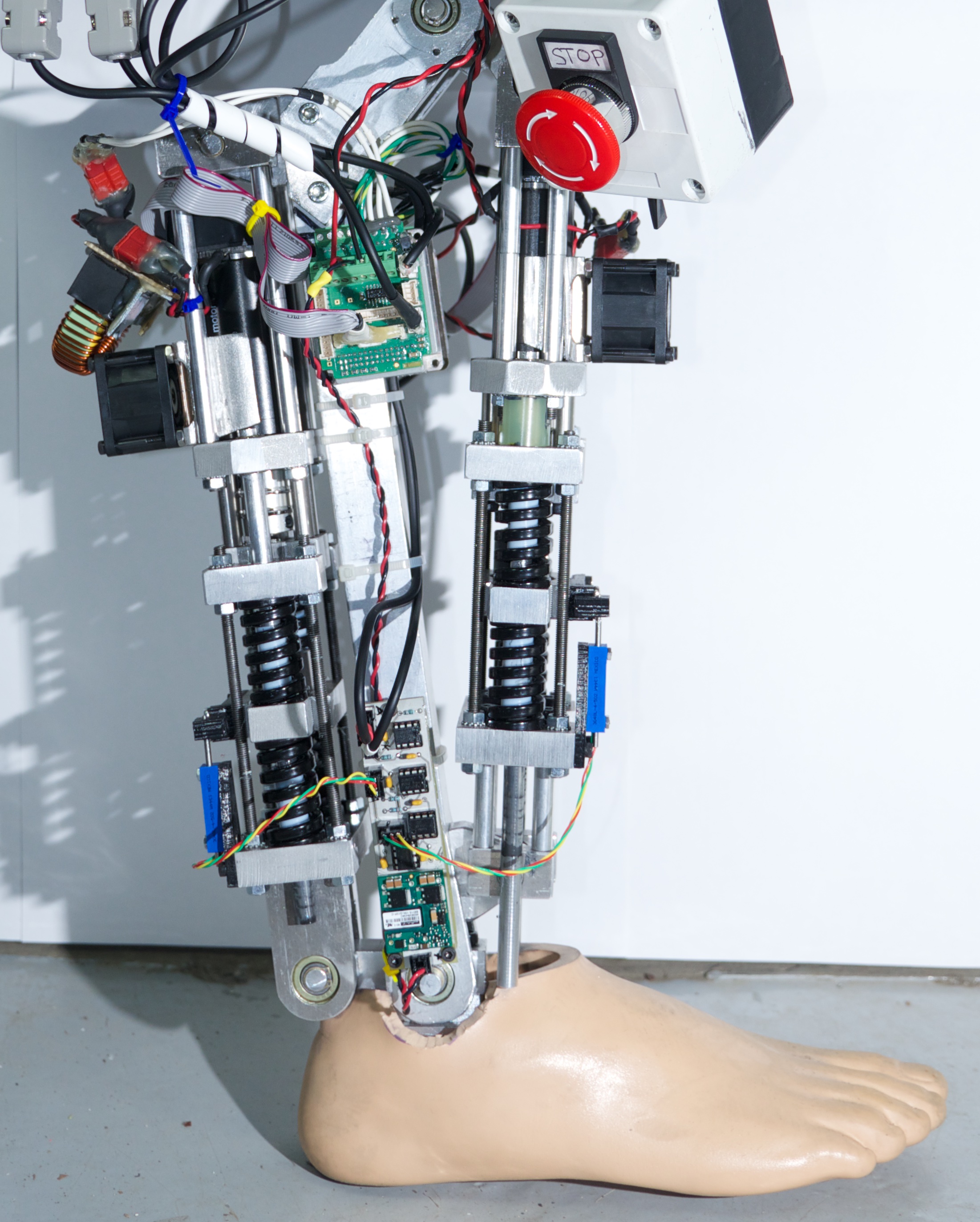

walkabout actuated transfemoral prosthesis
Design log

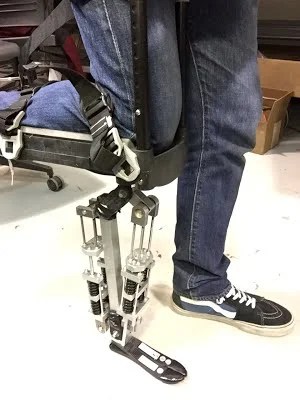

Walking prototype

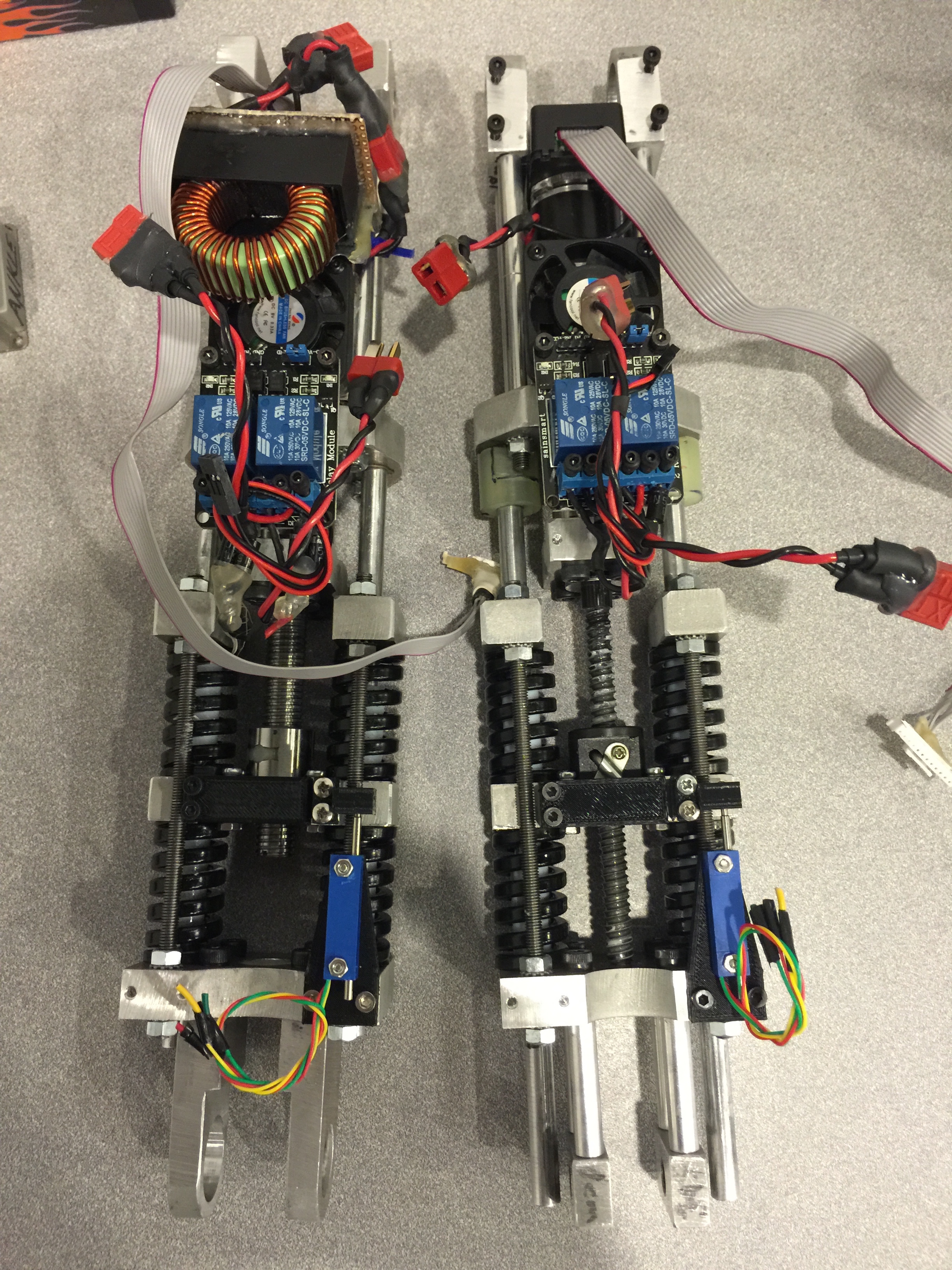

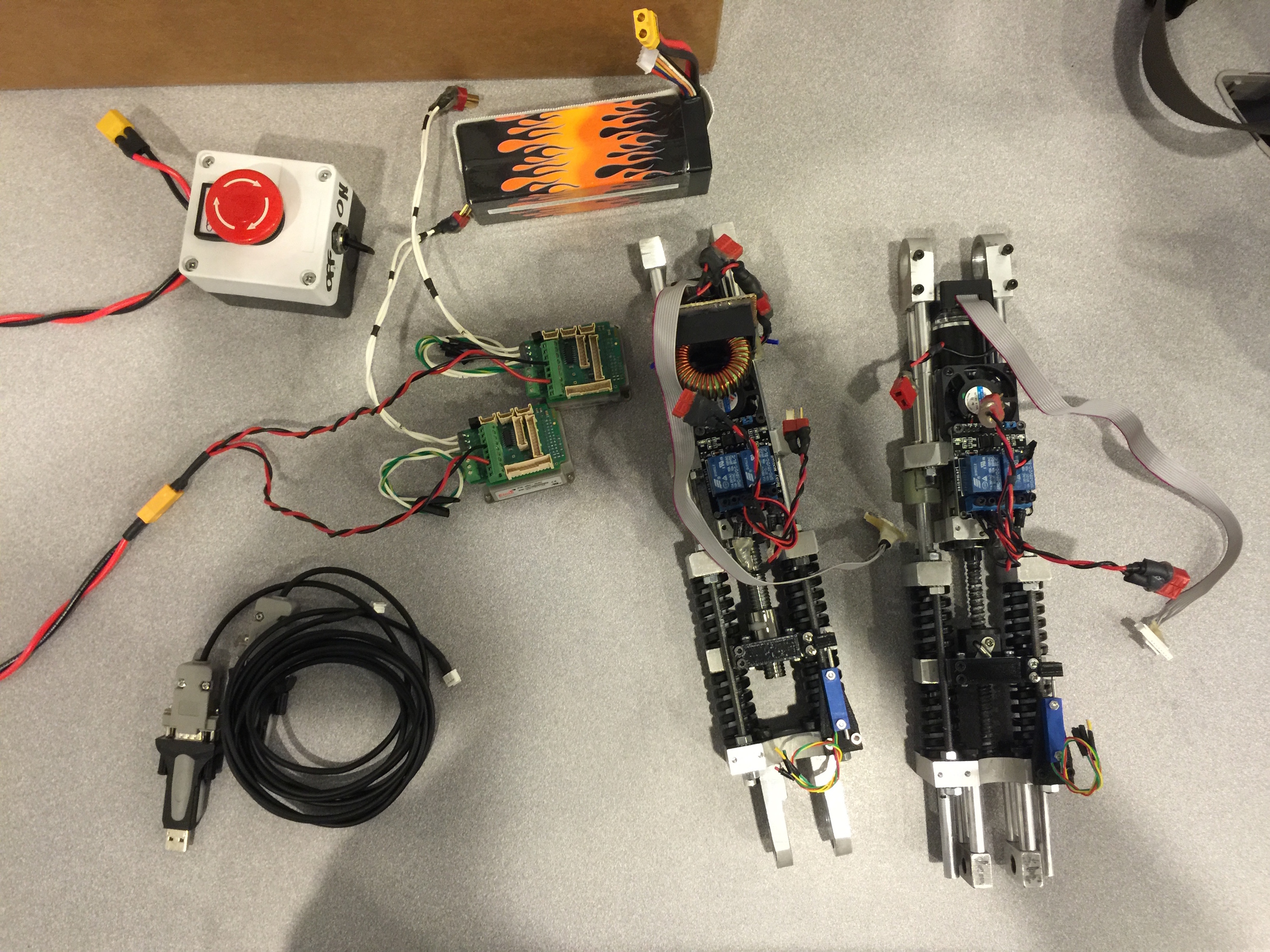

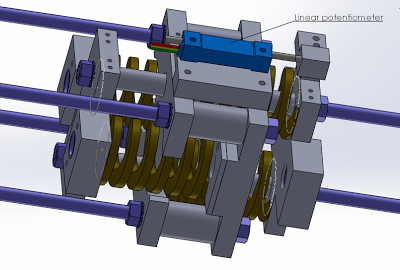

SERIES ELASTIC ACTUATIOn
The actuators for the knee and ankle joints employ spindle-drive series elastic actuators. While relatively slow compared to harmonic drive-brushless motor systems, these actuators have favorable properties in terms of cost and fidelity of force output.
Neuromuscular-model-based Control
Our control paradigm builds on the neuromuscular model of human walking developed by Professor Hartmut Geyer of CMU and Professor Hugh Herr of MIT. Hill-type muscles are controlled by networks of simulated neural reflexes, while finite state machines handle the swing-stance-swing transitions. The output of this model provides a desired torque for the series-elastic actuator controller.
Because the model has no pre-planned trajectory, the leg more robustly responds to disturbances during swing phase compared with strategies based on impedance control.
